The information of a workbook connection may be stored within the
workbook itself or externally in a
connection file (with the extension
.odc
,
iqy
etc.). If stored externally, these connections may be shared among multiple Excel developers.
Types of workbook connection
There are 9 connection-types which are enumerated with the xlConnectionType
enum:
The type of a workbook connection is exposed through the object's .type
property whose value is a member of the xlConnectionType
enumeration:
xlConnectionTypeDATAFEED | 6 | Data Feed |
xlConnectionTypeMODEL | 7 | PowerPivot Model |
xlConnectionTypeNOSOURCE | 9 | No source |
xlConnectionTypeODBC | 2 | ODBC |
xlConnectionTypeOLEDB | 1 | OLEDB |
xlConnectionTypeTEXT | 4 | Text |
xlConnectionTypeWEB | 5 | Web |
xlConnectionTypeWORKSHEET | 8 | Worksheet |
xlConnectionTypeXMLMAP | 3 | XML MAP |

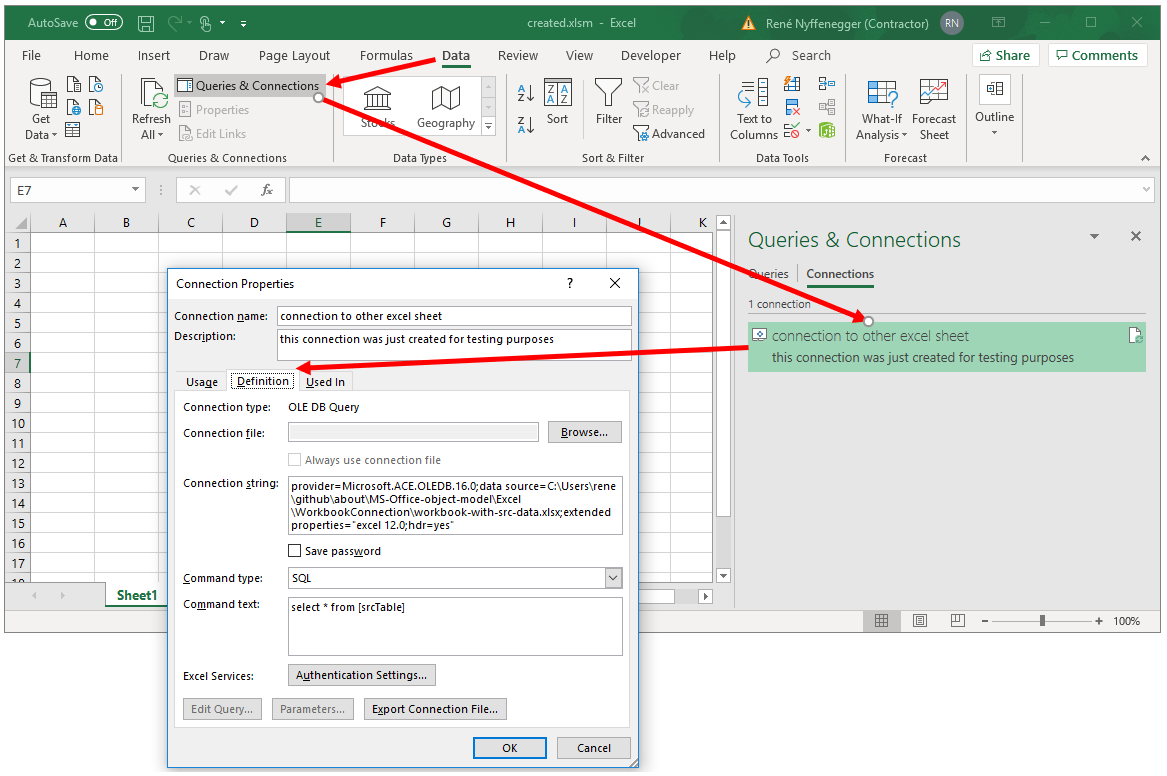

Adding a workbook connection with VBA
option explicit
sub main() ' {
dim curPath as string
curPath = thisWorkbook.path & chr$(92) ''' chr$(92) is the backslash.
dim pathToSourceWorkbook As String
pathToSourceWorkbook = curPath & "workbook-with-src-data.xlsx"
createSourceWorksheet pathToSourceWorkbook
dim connectionString as string
connectionString = "oledb;provider=Microsoft.ACE.OLEDB.16.0;" & _
"data source=" & pathToSourceWorkbook & ";" & _
"extended properties=""excel 12.0;hdr=yes"""
dim wbconn as workbookConnection
Set wbconn = activeWorkbook.connections.add2 ( _
name := "connection to other excel sheet" , _
Description := "this connection was just created for testing purposes", _
connectionString := connectionString , _
commandText := "select * from [srcTable]" , _
lCmdType := xlCmdSql)
end sub ' }
sub createSourceWorksheet(fileName as string) ' {
'
' Delete source workbook file if it alread exists.
'
if dir(fileName) <> "" then ' {
kill fileName
end if ' }
dim otherWorkbook as workbook
set otherWorkbook = workbooks.add
with otherWorkbook ' {
dim firstCell as range
with .sheets(1) ' {
dim r as long : r = 3
set firstCell = .cells(r,2)
.range( .cells(r, 2), .cells(r, 4) ).value = array("Col one", "Col two", "Col three" ) : r = r + 1
.range( .cells(r, 2), .cells(r, 4) ).value = array("Baz" , 42 , #2020-03-03# ) : r = r + 1
.range( .cells(r, 2), .cells(r, 4) ).value = array("Bar" , 99 , #2018-05-17# ) : r = r + 1
.range( .cells(r, 2), .cells(r, 4) ).value = array("Baz" , 123456 , #2019-11-13# ) : r = r + 1
.range( .cells(r, 2), .cells(r, 4) ).value = array("Foo" , 518 , #2018-07-19# ) : r = r + 1
.range( .cells(r, 2), .cells(r, 4) ).value = array("Baz" , 219 , #2014-10-02# ) : r = r + 1
.range( .cells(r, 2), .cells(r, 4) ).value = array("Foo" , 21 , #2015-09-09# )
'
' Name a source data range
'
.range( firstCell, .cells(r,4) ).name = "srcTable"
.usedRange.columns.autoFit
end with ' }
.saveAs _
fileName := fileName, _
fileFormat := xlOpenXMLWorkbook
.close
end with ' }
end sub ' }
