The clip space is a cube within which coordinates must be positioned in order to be rendered.
Each coordinate runs from -1 to 1:
x: left to right
y: bottom to top
z: front to back

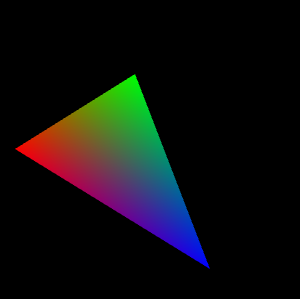

The following simple program draws a single triangly, hopefully demonstrating the effect of the x and y coordinates. The value of the z-coordinate, as long as it is between -1 and 1, has no visible effect because it goes from front to back:
<!DOCTYPE html>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html;charset=utf-8" />
<title>WebGL - the minimum</title>
<script type="text/javascript">
"use strict";
function init() {
var canvas = window.document.getElementById('webgl_canvas');
var gl = canvas.getContext('webgl');
var prg = gl.createProgram();
var vtxShdr = gl.createShader(gl.VERTEX_SHADER );
var frgShdr = gl.createShader(gl.FRAGMENT_SHADER);
gl.shaderSource(vtxShdr, `
attribute vec4 pos;
attribute vec4 col;
varying lowp vec4 gCol;
void main() {
gl_Position = pos;
gCol = col;
}
`);
gl.shaderSource(frgShdr, `
precision mediump float;
varying lowp vec4 gCol;
void main() {
gl_FragColor = gCol;
}
`);
gl.compileShader(vtxShdr);
gl.compileShader(frgShdr);
gl.attachShader(prg, vtxShdr);
gl.attachShader(prg, frgShdr);
gl.linkProgram(prg);
gl.useProgram(prg);
gl.clearColor(0.0, 0.0, 0.0, 1.0);
gl.clear(gl.COLOR_BUFFER_BIT);
var pos = gl.getAttribLocation(prg, 'pos');
var col = gl.getAttribLocation(prg, 'col');
gl.enableVertexAttribArray(pos );
gl.enableVertexAttribArray(col );
// -----------------------------------
// Type of buf is WebGLBuffer
var bufPos = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, bufPos);
gl.bufferData(
gl.ARRAY_BUFFER,
// X Y Z
// --------------
new Float32Array([-0.9, 0.0, 0.0, // red corner
-0.1, 0.5, 0.0, // green corner
+0.4, -0.8, 0.0 ]),// blue corner
gl.STATIC_DRAW
);
gl.vertexAttribPointer(
pos , // index: Index of vertex attribute
3 , // size: Number of components per vertix attribute (1..4)
gl.FLOAT, // type: Datatype
false , // normalized
0 , // stride:
0 // offset/pointer: Pointer to the first component of the first generic vertex attribute in the array
);
// ---------
var bufCol = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER, bufCol);
gl.bufferData(
gl.ARRAY_BUFFER,
new Float32Array([ 1.0, 0.0, 0.0 , 1.0, // red
0.0, 1.0, 0.0 , 1.0, // green
0.0, 0.0, 1.0 , 1.0]), // blue
gl.STATIC_DRAW
);
gl.vertexAttribPointer(
col , // index: Index of vertex attribute
4 , // size: Number of components per vertix attribute (1..4)
gl.FLOAT, // type: Datatype
false , // normalized
0 , // stride:
0 // offset/pointer: Pointer to the first component of the first generic vertex attribute in the array
);
gl.drawArrays(
gl.TRIANGLES, // mode:
0, // first: specify starting index in enabled arrays (-> enableVertexAttribArray)
3 // count: Number of indices to be rendered.
);
}
</script>
</head>
<body onload="init()">
<canvas id="webgl_canvas" width="300" height="300"></canvas>
</body>
</html>
